The Pouch Cell Battery Assembly Line is an integrated manufacturing system designed for the precise and efficient assembly of lithium-ion pouch cells. It combines multiple automated processes into a single streamlined workflow, helping battery manufacturers improve productivity, consistency, and overall product quality.
About Turnkey
Complete Production Process
Electrode Stacking: Accurate and consistent layer assembly.
Electrolyte Filling: Precise dosing to reduce defects.
Pouch Sealing: Reliable sealing for long-term stability.
Formation & Aging: Controlled charge/discharge cycles.
Testing & Grading: In-line quality control for defect-free output.
Core Equipment Composition
Stacking Machines: High-precision automated stacking.
Electrolyte Filling Systems: Consistent and accurate dispensing.
Sealing Machines: Ensures strong and uniform seals.
Formation & Grading Systems: Standardized cycling and sorting.
Material Handling Units: Automated transport of cells.
Inspection Systems: Real-time monitoring of quality and defects.
Application Scenarios
Electric Vehicles: High-performance EV pouch batteries.
Energy Storage Systems: Residential and grid-scale applications.
Consumer Electronics: Batteries for portable devices.
Industrial Equipment: Reliable power sources for industrial uses.
New Factories & Upgrades: Turnkey assembly lines or retrofit existing lines.

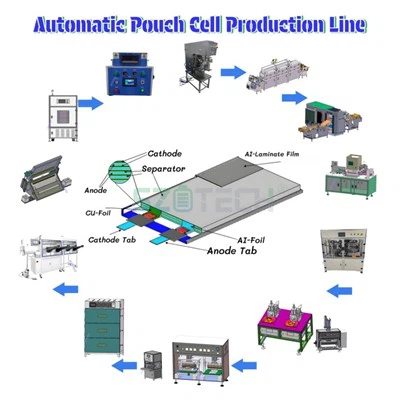

Pouch Cell Sodium ion Battery Battery Process Flow Chart
Pouch Cell Production Line Solution
Why Choose Us
- Expertise & Experience
Over 10 years of experience in battery assembly solutions, successfully serving domestic and international clients.
- Comprehensive Service
Provides 24/7 technical support, on-site commissioning, routine maintenance, and spare parts supply to ensure uninterrupted operation.
- Flexible & Customer-Oriented
Modular solutions and scalable production lines tailored to different battery types, sizes, and capacities.
- Energy-Efficient & Safe Operations
Focus on environmentally friendly and low-energy solutions, with safety measures in place for operators and production processes.
- Ease of Use & Maintenance
User-friendly systems with PLC control, enabling smooth operation and minimal downtime.
Related Equipment
Equipment List
|
S NO. |
Workshop |
Equipment Name |
|
1 |
Cathode |
Oven |
|
2 |
Planetary Vacuum Mixer |
|
|
3 |
Turnover Barrel with lifting system |
|
|
4 |
Viscometer |
|
|
5 |
Coating Machine |
|
|
6 |
Thickness Gauge |
|
|
7 |
Continue Pressing Machine |
|
|
8 |
Auto Slitting Machine |
|
|
9 |
Baking Oven |
|
|
10 |
Anode |
Deionized water machine |
|
11 |
Planetary Vacuum Mixer |
|
|
12 |
Turnover Barrel with lifting system |
|
|
13 |
Viscometer |
|
|
14 |
Coating Machine |
|
|
15 |
Thickness Gauge |
|
|
16 |
Continue Pressing Machine |
|
|
17 |
Auto Slitting Machine |
|
|
18 |
Baking Oven |
|
|
19 |
Assemble |
Auto Winding Machine |
|
20 |
Short Testing Machine |
|
|
21 |
Bottom Shell Welding Machine |
|
|
22 |
Auto Grooving Machine |
|
|
23 |
Baking Oven |
|
|
24 |
Filling and |
Glove Box |
|
25 |
Laser Welder |
|
|
26 |
Linear Sealing Machine |
|
|
27 |
Battery Cleaning Machine |
|
|
28 |
PVC Shrinkage Machine |
|
|
29 |
Cartoning machine |
|
|
30 |
Grading |
Formation Machine |
|
31 |
Computer |
|
|
32 |
High temperature storage |
|
|
33 |
Normal temperature storage |
|
|
34 |
Cell Inkjet Printer |
|
|
35 |
OCV1 |
|
|
36 |
OCV2 |
|
|
37 |
OCV3(Sorting machine) |
|
|
38 |
Grading Machine |
|
|
39 |
Sorting machine |
|
|
40 |
Other |
NMP recovery system |
|
41 |
Plant dehumidification system |
|
|
42 |
Purified water |
|
|
43 |
Other Necessary |
Vacuum Pump + Compressed Air |
Application Cases
Partner Company
FAQ
- Q: How long is the delivery time?
- Q: Does the system improve yield and reduce defects?
- Q: Do you provide installation and training?
